Flight Recorder User Manual

Version 2.0.7.1 — Canuck Air Simulations Est. 2020

1. Introduction

Welcome to the Flight Recorder, an advanced flight data analysis tool designed for Microsoft Flight Simulator 2020 and 2024. This application captures real-time flight data via SimConnect and provides comprehensive analysis to help you improve your flying skills.

1.1. Key Features

• Real-Time Data: View live flight data including altitude, airspeed, pitch, bank, engine parameters, and fuel flow.
• Flight Recording: One-click recording automatically saves data in CSV format.
• Playback Viewer: Replay recorded flights step-by-step for detailed review.
• Flight Analysis Report: Generate detailed reports with performance metrics and recommendations.
• PDF Report Export: Save analysis reports as PDFs for sharing.

Back to Top

2. System Requirements

• Simulator: Microsoft Flight Simulator 2020 or 2024.
• Operating System: Windows 10 or later.
• Processor: 2.0 GHz or higher.
• Memory: 4 GB RAM.
• Graphics: DirectX 11 compatible.
• Disk Space: 100 MB.

Back to Top

3. Installation & Setup

1. Download the latest release from SimMarket.
2. Extract the contents of the zip file to a folder of your choice.
3. Launch the MSFSFlightRecorder.exe file.
4. Important: Run the application as an administrator to ensure proper SimConnect communication.

Back to Top

4. Main Recorder Window

This is the primary interface for connecting to the simulator and recording flights.

4.1. Top Status Bar

• ● Disconnected/Connected: Indicates the status of the SimConnect connection.
• Aircraft: Displays the detected aircraft title from the simulator.
• ○ Not Recording/● RECORDING: Shows the current recording status.

4.2. Button Controls

• Connect to MSFS: Establishes a connection to Microsoft Flight Simulator.
• Start Recording: Begins recording flight data.
• Stop Recording: Stops the recording session and saves the data to the Flights folder.
• Playback Viewer: Opens a separate window to load and replay saved flight files (CSV).

4.3. Flight Data Display

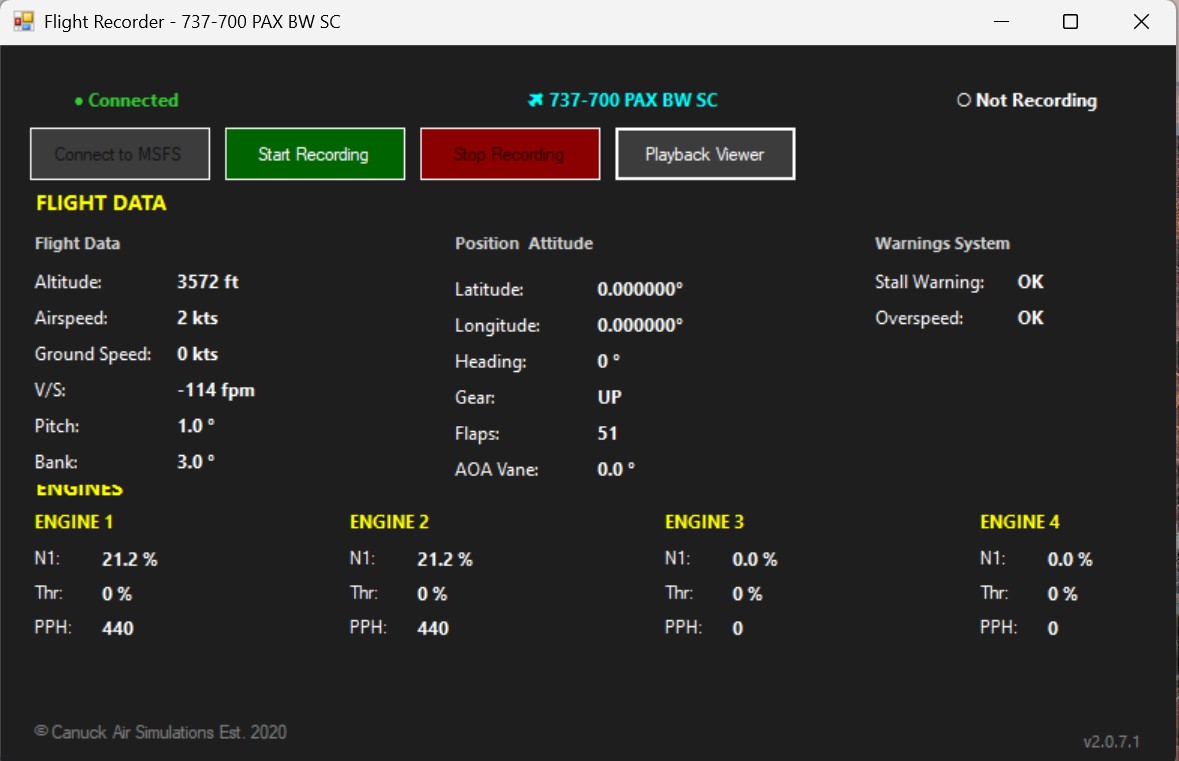

The main window organizes data into three logical columns:

4.4. Engine Section

Displays data for up to four engines: N1 (%), Thr (Throttle %), and PPH (Fuel flow per engine).

Back to Top

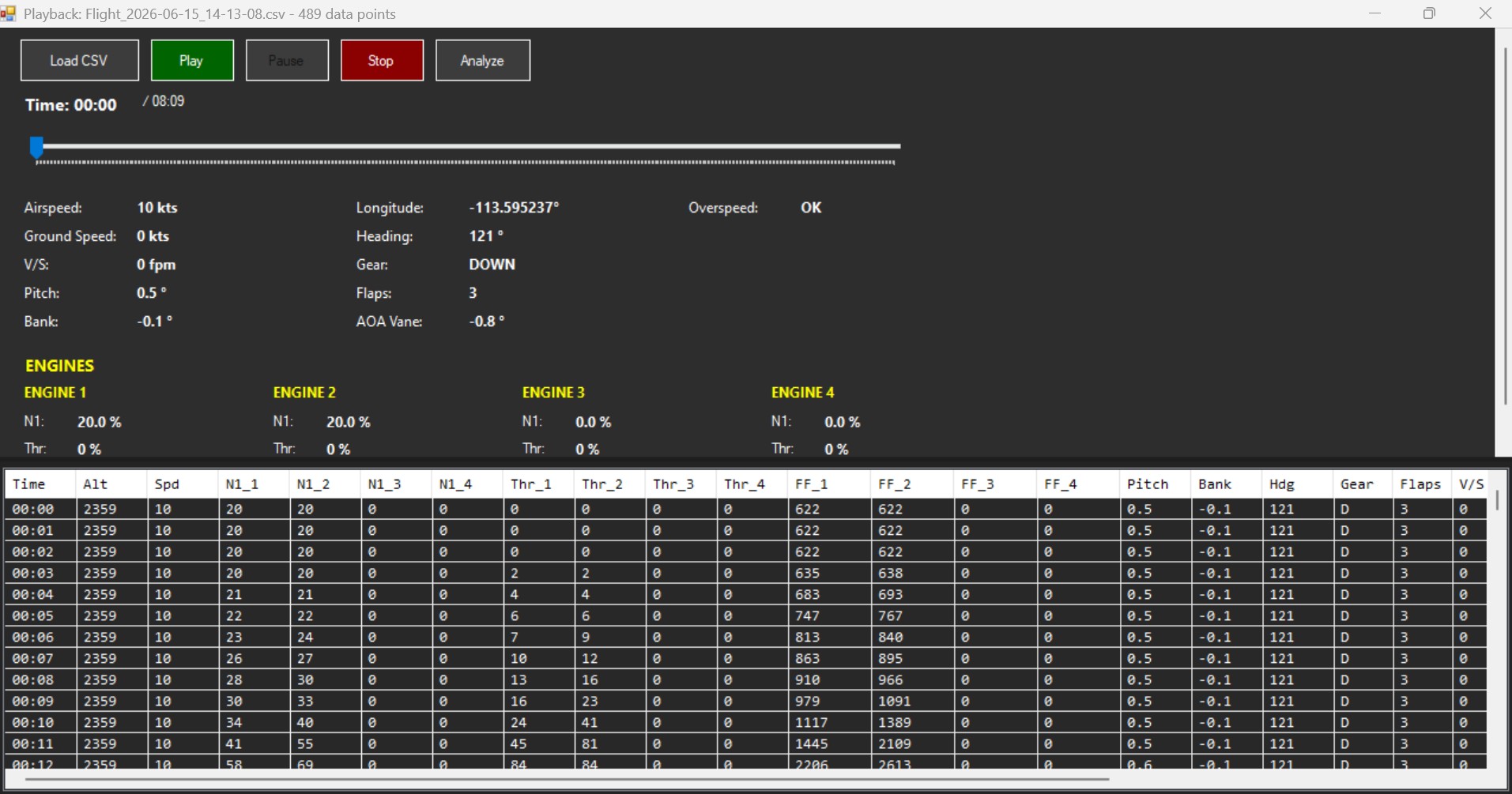

5. Playback Viewer

1. Load CSV: Browse and select a CSV flight file from the Flights folder.
2. Play/Pause/Stop: Control playback of the recorded flight.
3. Time Slider: Drag to manually scrub through the flight timeline.
4. Data Grid: The bottom panel displays a detailed list of all data points.
5. Analyze: Generate a comprehensive analysis report based on the loaded flight data.

Back to Top

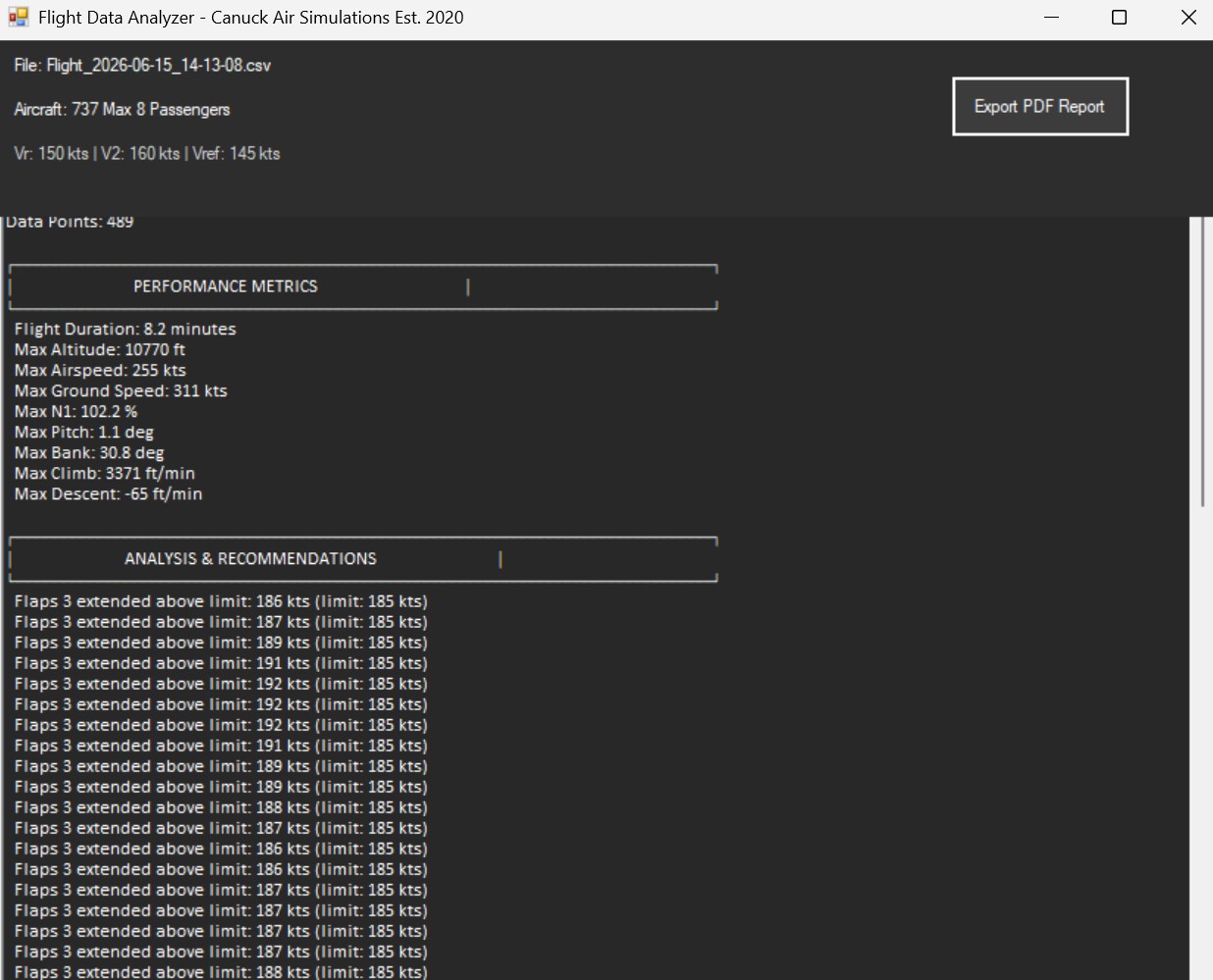

6. Flight Analysis & Reports

6.1. Performance Metrics

Automatically calculates: Flight Duration, Max Altitude/Airspeed/Ground Speed, Max Pitch/Bank Angles, Max Climb/Descent Rates.

6.2. Flight Phase Analysis

• Takeoff: Rotation speed (Vr), liftoff speed (V2), and takeoff roll duration.
• Approach: Stability tracking for speed and descent rate.
• Landing: Vertical speed at touchdown to identify hard, firm, normal, or smooth landings.

6.3. Analysis & Recommendations

Highlights anomalies (e.g., unstable approach, hard landing) and provides actionable recommendations for improvement.

6.4. Exporting Reports

PDF Export: Click the "Export PDF Report" button. Reports are saved to the PDF-Reports folder.

Back to Top

7. File Locations

• Flight Recordings (CSV): \MSFSFlightRecorder\Flights\
• Analysis Reports (PDF): \MSFSFlightRecorder\PDF-Reports\

Back to Top

8. Supported Aircraft & Fuel Flow Logic

Fuel flow values are as reported by the simulator's SimConnect variables.

Back to Top

9. Version History

• v2.0.7.1 (Current):
  • Corrected Per-Engine Fuel Flow logic for Boeing 777F.
  • Updated UI layout to fix missing labels (Altitude, Latitude, Flaps).
  • Fixed heading display stability (0/360 degree flicker).
  • Updated "Warnings System" header.
• v2.0.7:
  • Removed APU and Autopilot displays.
  • Removed AOA Vane display.
  • Initial release with core functionality.

Back to Top

10. Troubleshooting & Support

• "Failed to connect" error: Run the application as an administrator. Ensure MSFS is running.
• No data updating: Check that you are connected to MSFS and the aircraft is powered on.
• Playback shows no data: Verify the CSV file is not corrupted and has valid data.

For further support, visit our community forums or contact Canuck Air Simulations.
